IEC

Expansion Insert - C Type: short

Straightforward and quick manual installation
Locking improves torque resistance and holding force
Very sharp teeth for improved penetration of material
Low cost

  • Straightforward and quick manual installation
  • Locking improves torque resistance and holding force
  • Low cost
  • Very sharp teeth for improved penetration of material

Fasteners Engineering
Large Series – E-Shop

Div 5
Div 3
Div 6
Div 4
Div 1
Div 2
Image technique 1
Image technique 2

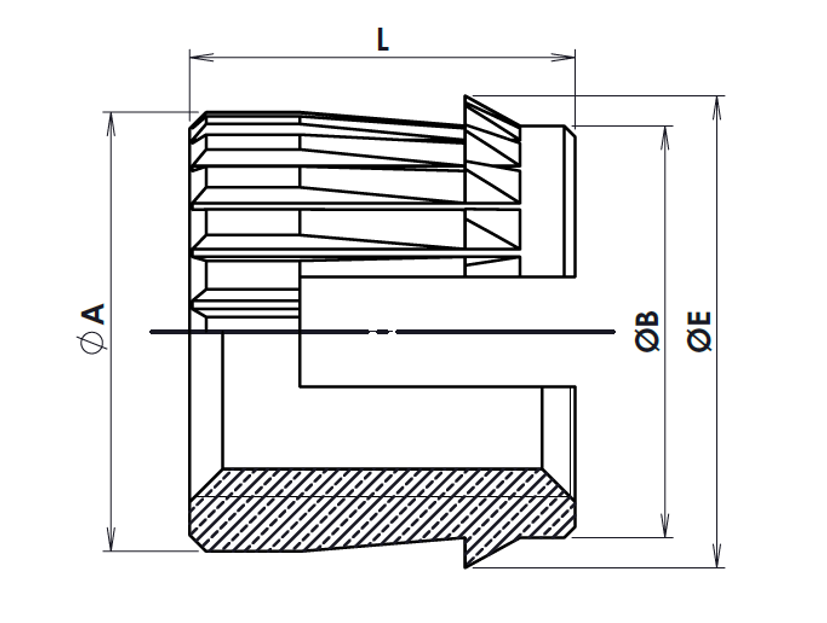

Part Number Thread M (6H) L (mm) Ø E (mm) Ø A (mm) Ø B (mm) Well ØTechnical sheet 3D
IE C 020 035 T039 L 0M2 X 0.403.53.93.53.13.10

IE C 025 040 T044 L 0M2.5 X 0.4544.443.53.60 - 3.70

IE C 030 050 T056 L 0M3 X 0.5055.654.54.60 - 4.70

IE C 035 050 T059 L 0M3.5 x 0.6055.95.54.95.00 - 5.20

IE C 040 050 T066 L 0M4 X 0.7056.665.45.50 - 5.70

IE C 050 060 T076 L 0M5 x 0.8067.676.56.60 - 6.70

IE C 060 070 T086 L 0M6 X 1.0078.687.57.60 - 7.70


Phase
01

The insert is placed in a cavity which is either drilled or moulded in: the well.

Phase
02

The insert is forced into the well by axial pressure, deforming slightly in the process. The insert will be flush with the material to avoid possible removal due to lever effect.

Phase
03

As the screw goes in, the insert returns to its original shape, the locking pyramids are forced into the material, providing holding force and torque resistance. Select a screw long enough to effectively force the locking pyramids into the material. The screw must never come into contact with the bottom of the well.

  • According to laboratory tests carried out on unfilled materials
  • Values given for information only

Product

Sub-family

Type

Thread

L

Outer Shape

Ø E

Materials

Specification

Example

I

E

C

0

2

0

0

3

5

T

0

3

9

L

0

Insert

Expansion

Short with 1 locking ring

Internal thread
M4 (1/10 of mm)

Total length 5 mm
(1/10 of mm)

Knurled

Largest diameter 3.9mm (1/10mm)

Brass CW 614N

None

Sub-families
U Ultrasonic
V Screw
S Moulded-in
E Expansion
P Pressed-in

Expansion insert type
C Short with 1 locking ring
L Long with 2 locking rings

Outer shape
T Knurled
H Hexagonal

Materials
L Brass CW 614N
A Hardened steel
1 Inox 1.4305 (A1-303)
2 Inox 1.4567 (A2-304Cu)
4 Inox 1.4404 (A4-316L)
5 Inox 1.4571 (A5-316Ti)

Specifications
0 none
1 ZnNi Zinc Nickel
N Nickelage
